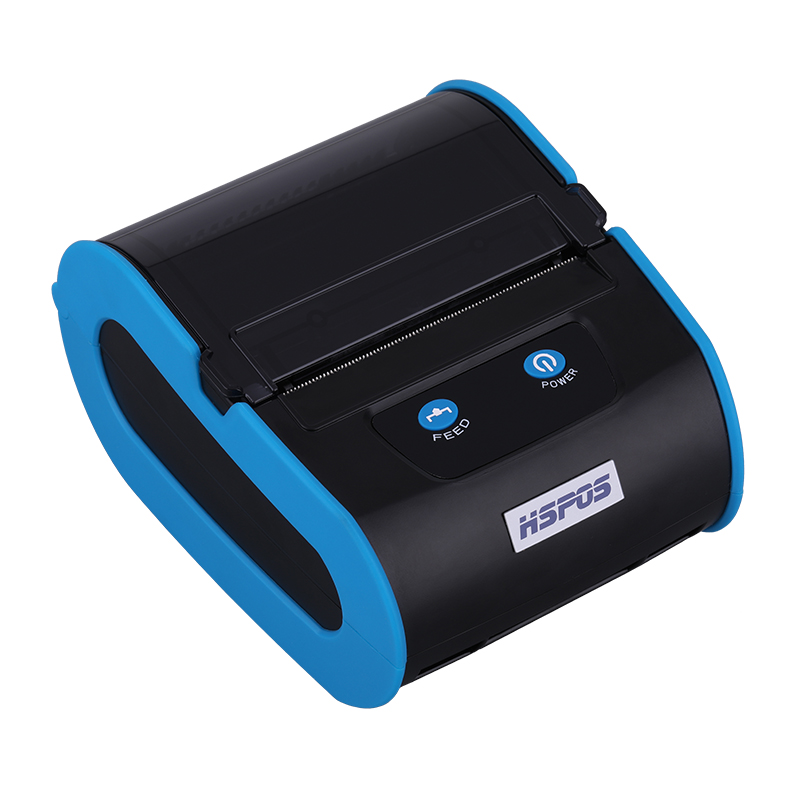

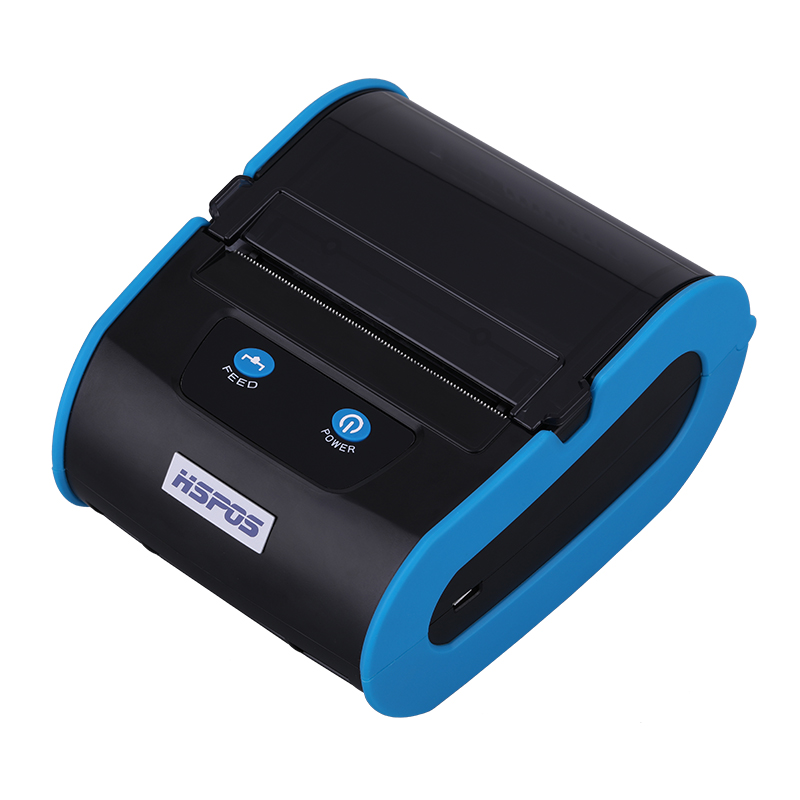

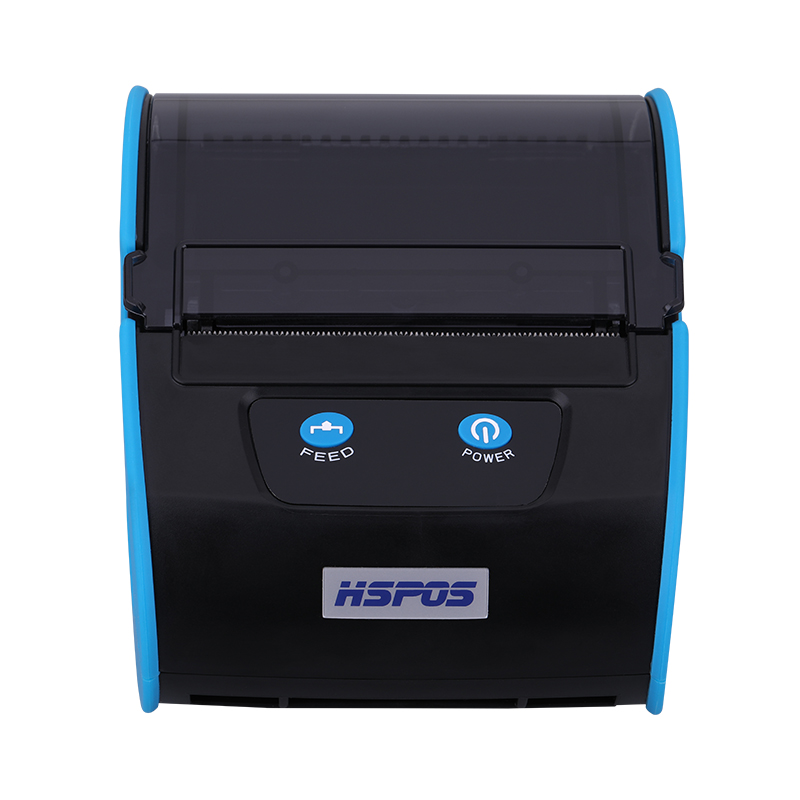

Sticker Printer HS-PL83AI

Printing parameter

Printing method

Thermal printing

Resolution

203DPI,8 dots/mm

Printing width

72mm(384dots)

Printing speed

About 70-80mm/s

Interfaces

Standard: USB interface  Optional ：Bluetooth

Command set

/

ESC/POS compatible commands

Storage

RAM

Receive buffer area 2K Bytes

FLASH

FLASH 4M bytes, NV bitmap 64K bytes

characters

Chinese

GB18030 24×24

Words, figures

ASCII 9×17,12×24

User-defined

Support

Code pages

Optional international character sets 45

TRADITIONAL CHINESE,CHINESE,CP437 [U.S.A., Standard Europe],Katakana,CP850 [Multilingual],CP860 [Portuguese],CP863 [Canadian-French],CP865 [Nordic],WCP1251 [Cyrillic],CP866 Cyrillic #2 ,MIK[Cyrillic /Bulgarian],CP755 [East Europe，Latvian 2],Iran ,CP862 [Hebrew]

WCP1252 Latin I,WCP1253 [Greek] ,CP852 [Latina 2],CP858 Multilingual Latin Ⅰ+Euro),Iran II ,Latvian,CP864 [Arabic],ISO-8859-1 [West Europe] ,CP737 [Greek],WCP1257 [Baltic],Thai,CP720[Arabic],CP855,CP857[Turkish]

WCP1250[CentralEurope],CP775,WCP1254[Turkish],WCP1255[Hebrew],WCP1256[Arabic],WCP1258[Vietnam],ISO-8859-2[Latin 2],ISO-8859-3[Latin 3],ISO-8859-4[Baltic],ISO-8859-5[Cyrillic],ISO-8859-6[Arabic],ISO-8859-7[Greek],ISO-8859-8[Hebrew],ISO-8859-9[Turkish],ISO-8859-15 [Latin 3],Thai2,CP856

Chart

/

Supports different density dots and images printings

Supports grating bitmap printing

Supports download bitmap printing, every bitmap size should less than 64K, and the total capacity of download bitmap is 64K.

Bar codes

1D

UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93

2D

QR Code

Detection function

Sensor

Paper out

Thermal paper

Type

Standard thermal print paper

Width

80±0.5mm

Thickness

0.065~0.1mm

Diameter

60mm(Max.)

Physical  characteristics

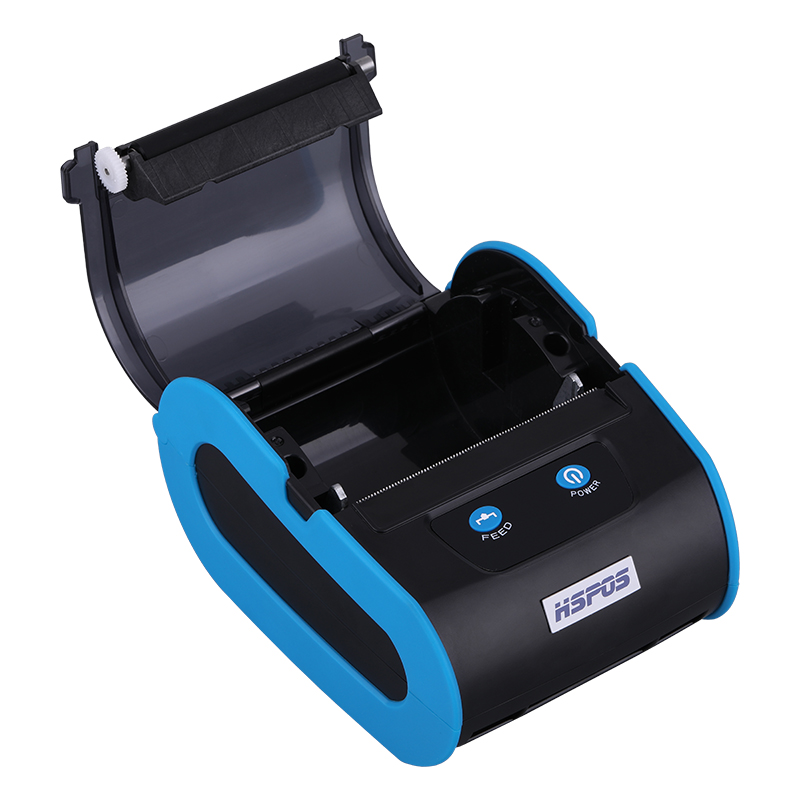

Paper loading

Easy paper loading

Paper cutting

Manual cut paper

Operating condition

-10℃ ~ 50℃，25% ~ 80%RH

Storage condition

~40℃ ~ 70℃，≤93%RH（40℃）

Outline dimension

97.5mm×75mm×48mm（W×L×H）

Weight

0.45Kg

Reliability

TPH life

150km

Motor life

360,000 hours
