Label Receipt Printer for KIOSK HS-QR73

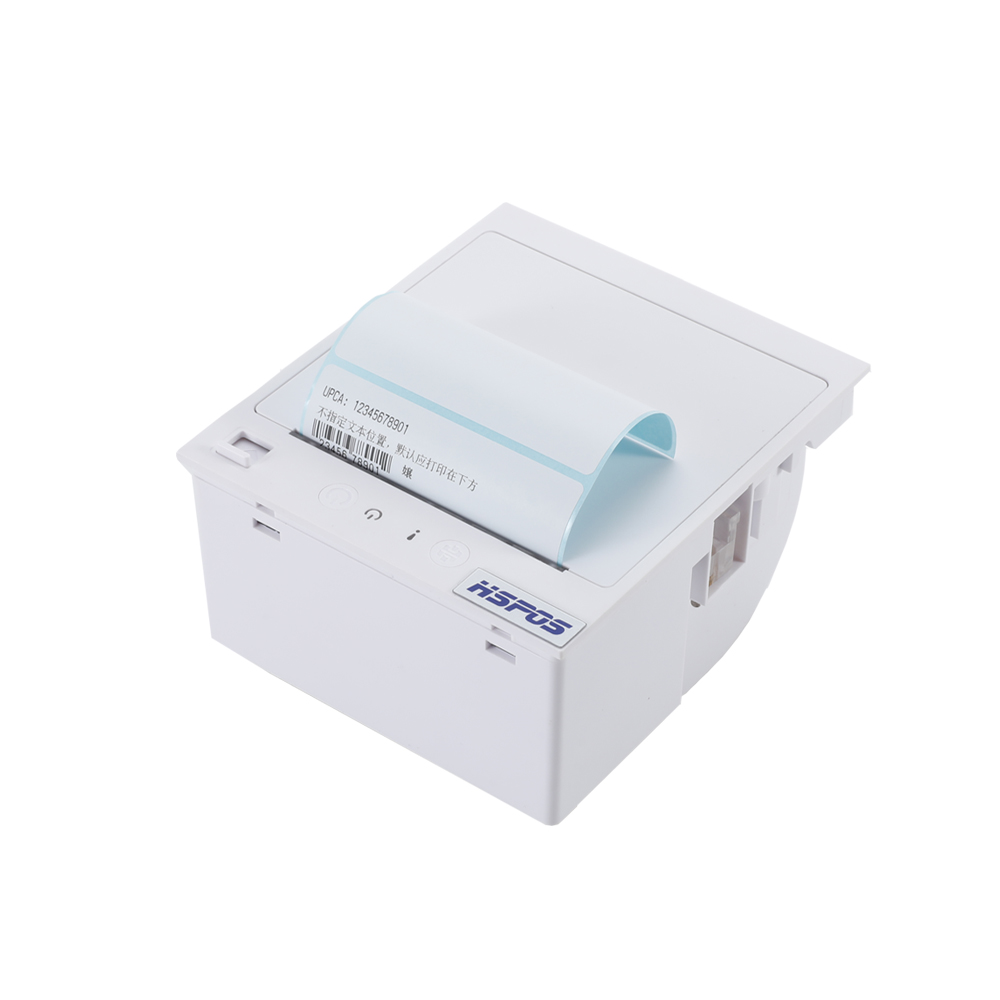

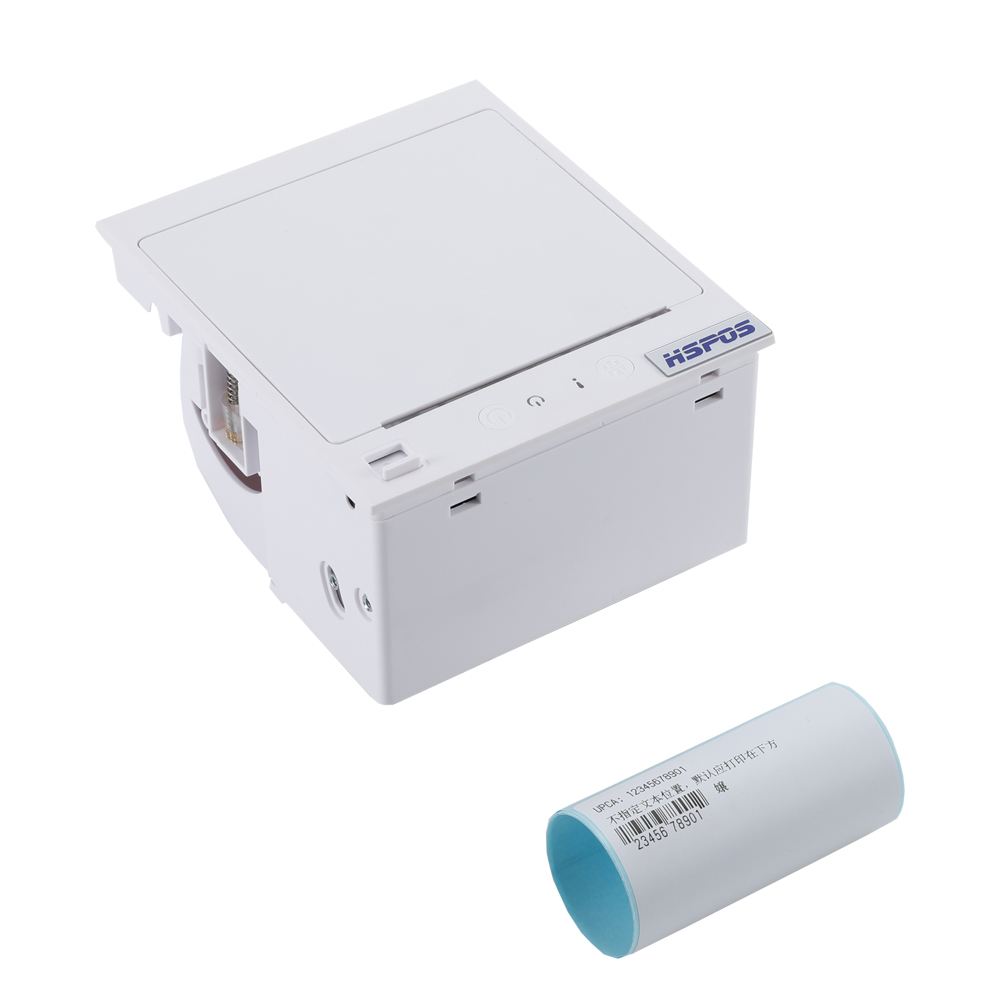

Embedded label printer HS-K35 is an embedded panel printer that supports multiple interfaces, USB, parallel, etc. This panel printer supports API interfaces in multiple languages, making secondary development easier. The print width is 72mm, and it supports printing. Small ticket and label, with cutter. Support windows, Android, linux and other systems. We provide SDK and free online technical guidance.

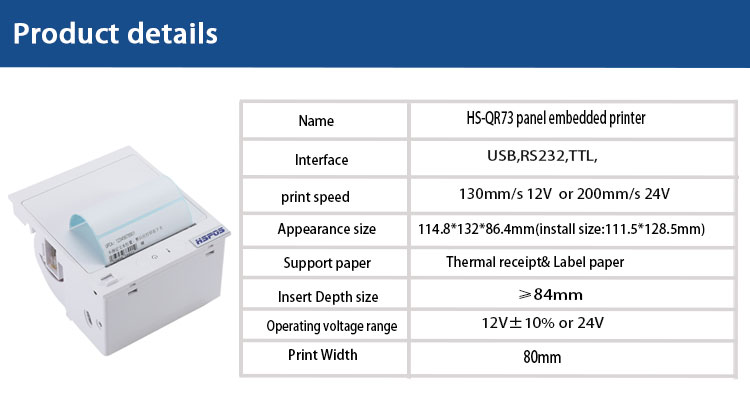

Product detailsPosition:Home >Products > Product details
  • Description

    Embedded label printer  for POS system

    Support Raspberry Pi 2

    Support Windows2000/XP/7/8/10, Linux,

    Good price and Short delivery lead time

    Factory/Manufacture with engineer team, able to do OEM&ODM

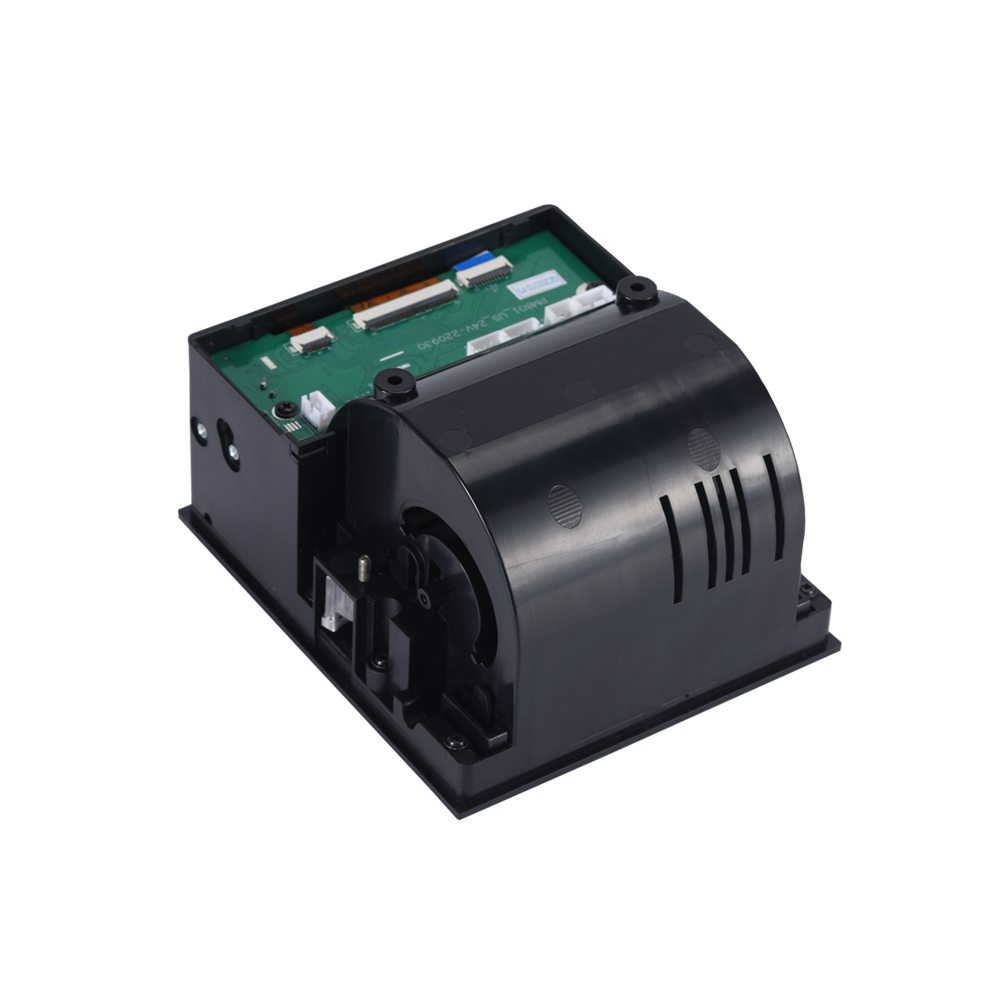

    With cutter, mechanism, control board; With bracket optional

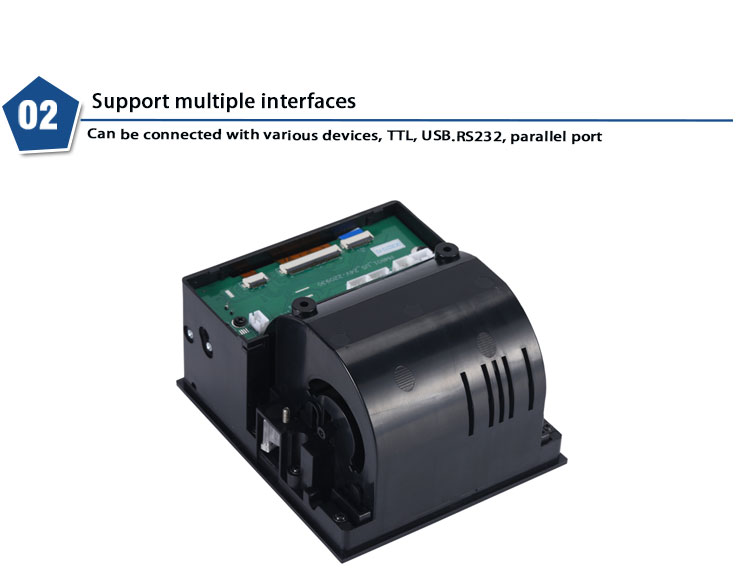

    SUPORT USB+parallel Interface

    With an adjustable paper nearly sensors and a paper take away sensors

    Holding down the Feed button, power on selftest.

    Support Black marker sensor functions

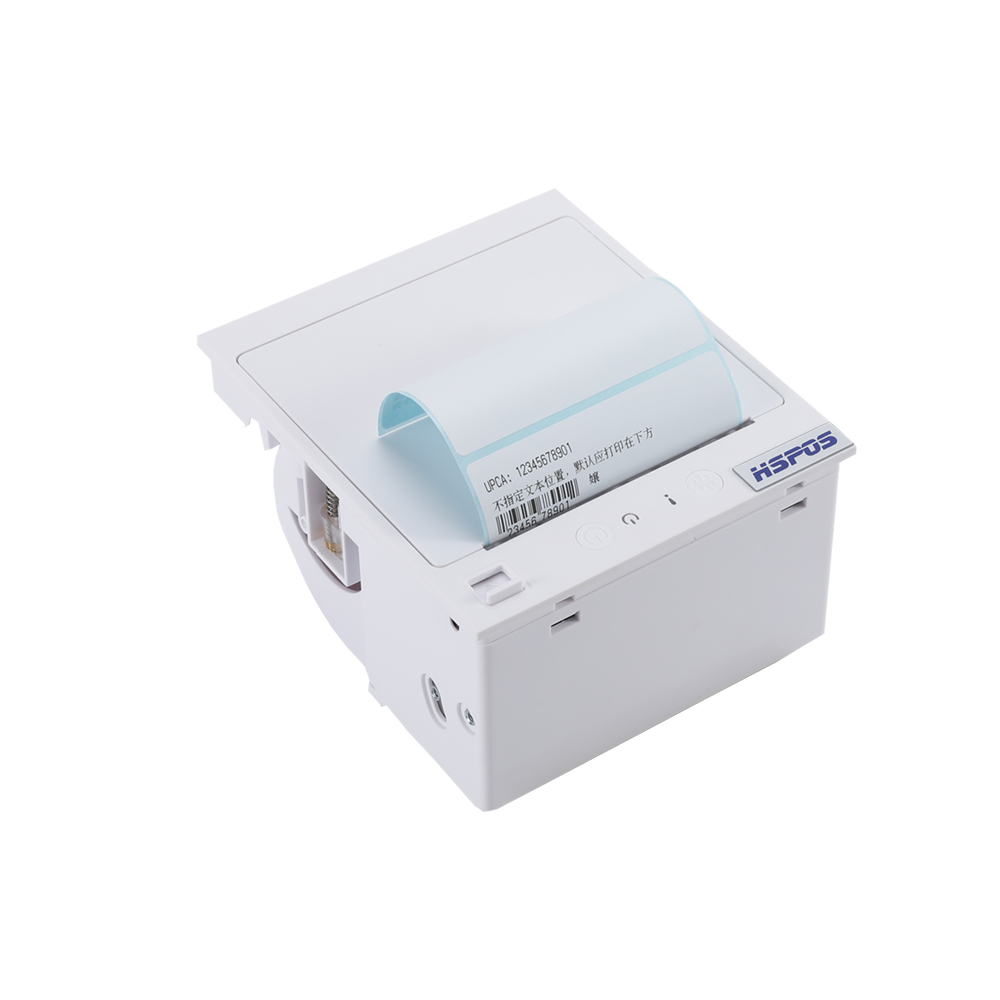

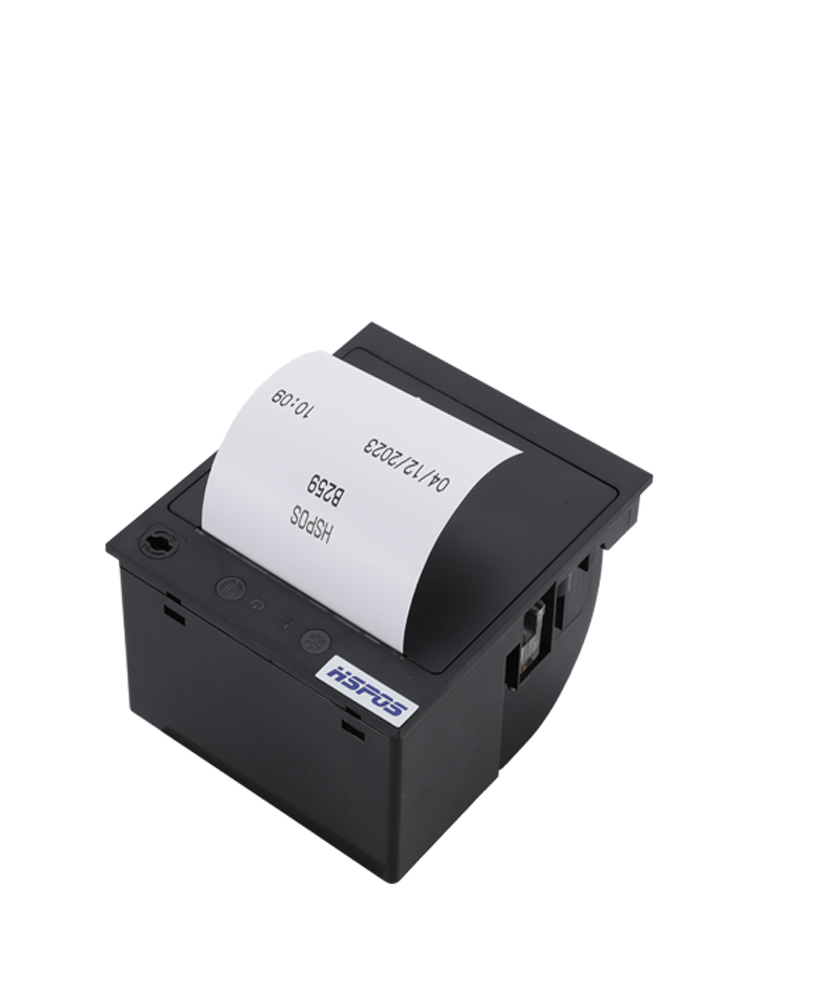

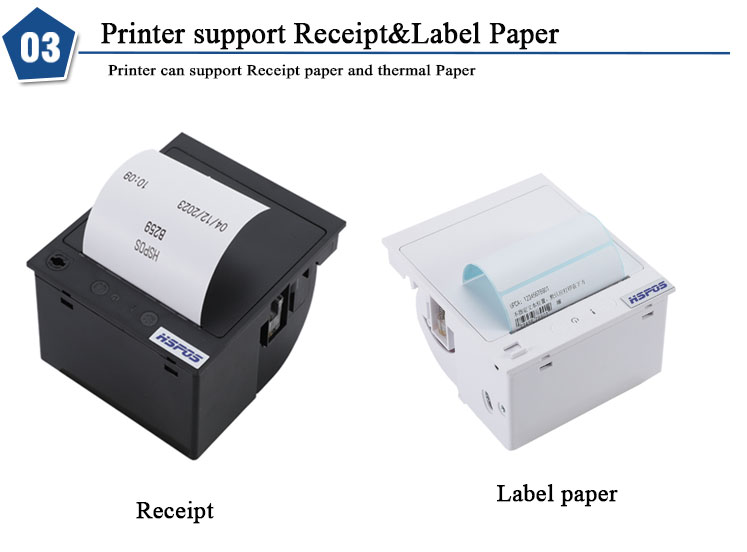

    Support receipt and Label sticker paper.

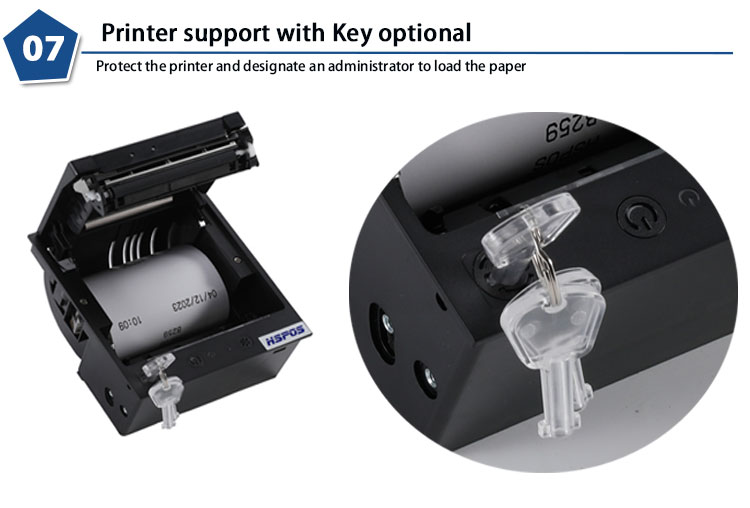

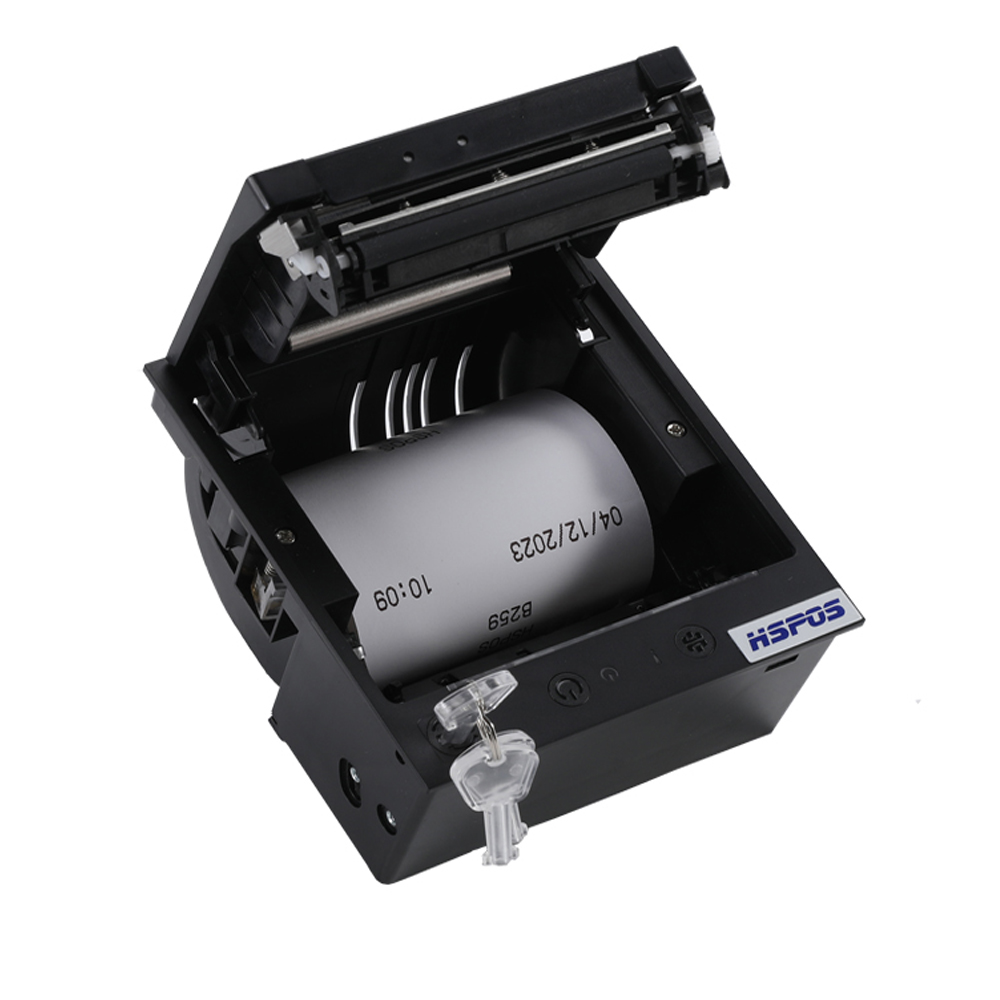

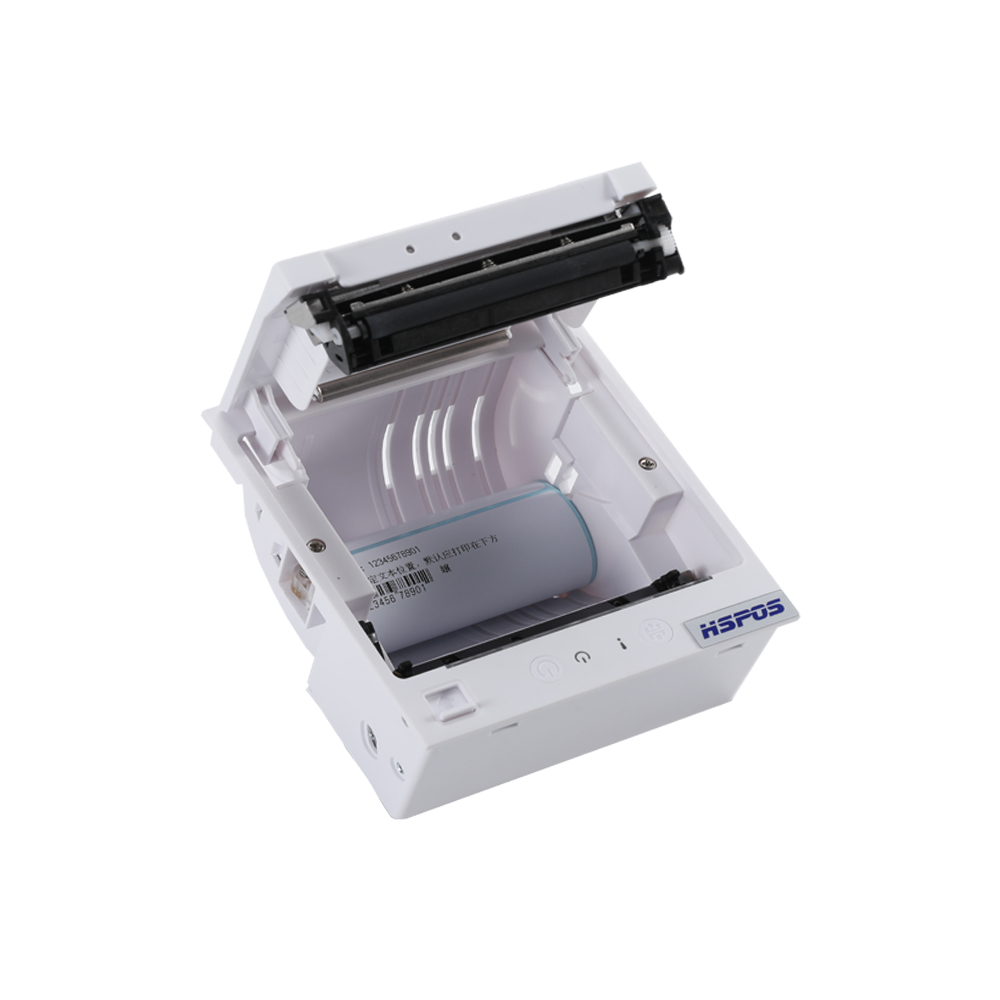

    With key to open the printer cover (optional)


  • Product Details


  • Parameter

    Printing Method

    Thermal

    NamePanel thermal printer K35

    Dots/line

    640 dots/line

    Resolution

    203DPI

    Printing Width(mm)

    72mm

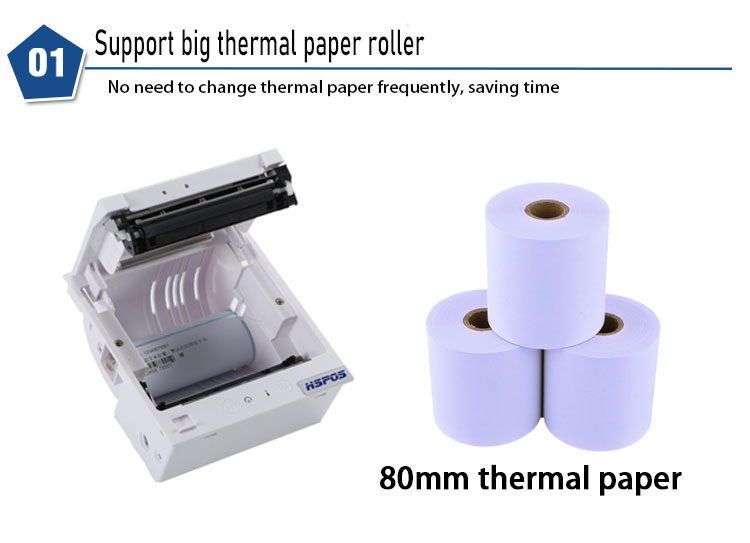

    Paper Width(mm)

    80mm

    Paper Thickness(μm)

    56-150

    Feed Resolution(mm)

    0.125

    Interface

    USB+parallel

    W x D x H(mm)

    131.8*114.8*86mm

    Weight(g)

    532g

    Head temperature detection

    Thermistor

    Paper detection

    Transmission photoelectricity switch

    Black mark detection

    Reflecting photoelectricity pipe

    Platen position detection

    Light touch swith

    Operation voltage (V)

    24±10%

    Logical voltage(V)

    5±0.25

    Formfeeding motor voltage(V)

    24±10%

    Auto cutting motor voltage(V)

    24±10%

    Detection voltage (V)

    5±0.25

    Abrasion resistance

    100 km

    Auto cutting frequency

    1 million times

    Operating temperature(°C)

    0 to 50 (no condensation)

    Operating humidity(RH)

    10% to 80% (no condensation)

    Storage temperature(°C)

    -25 to 70 (no condensation)

    Storage humidity(RH)

    5% to 95% (no condensation)
