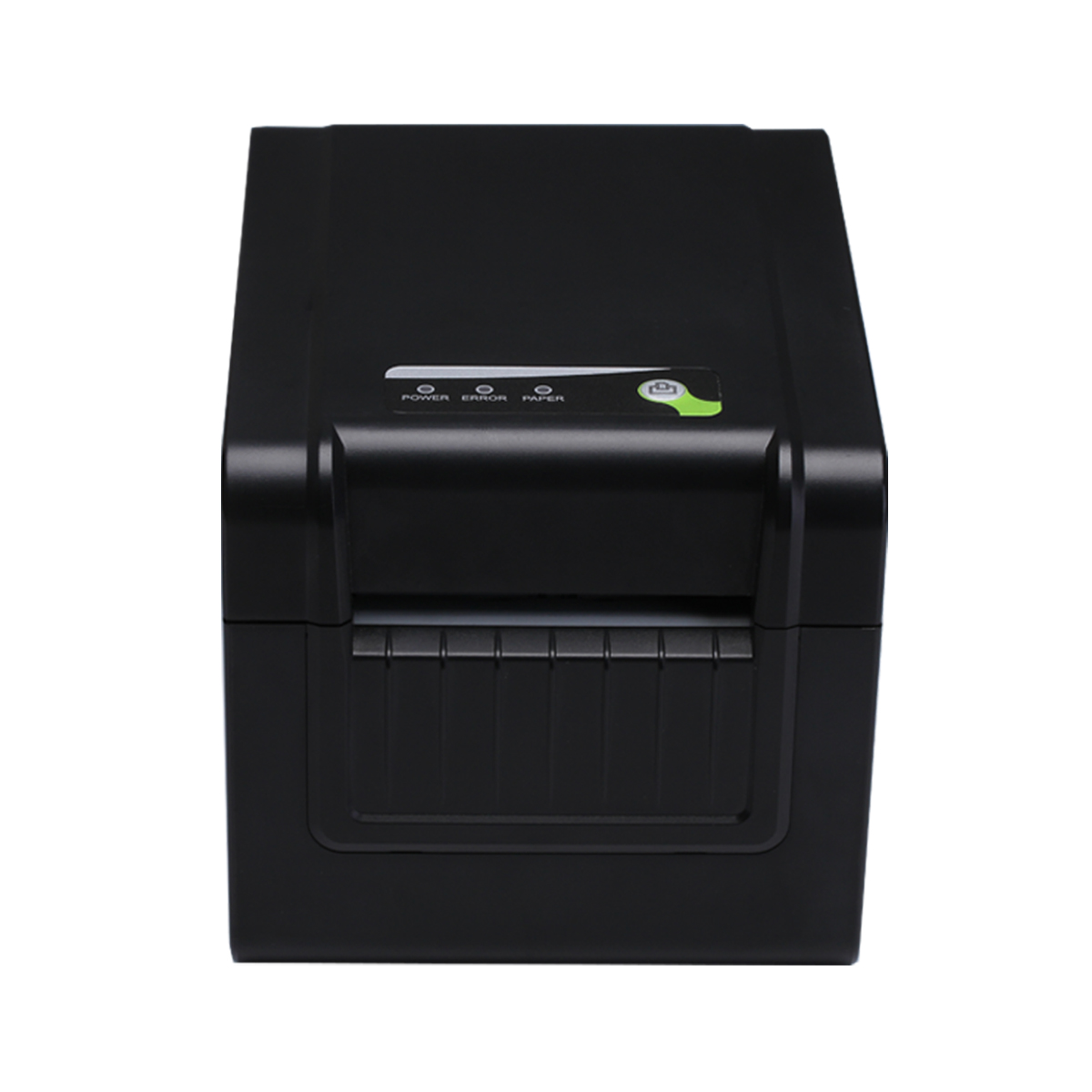

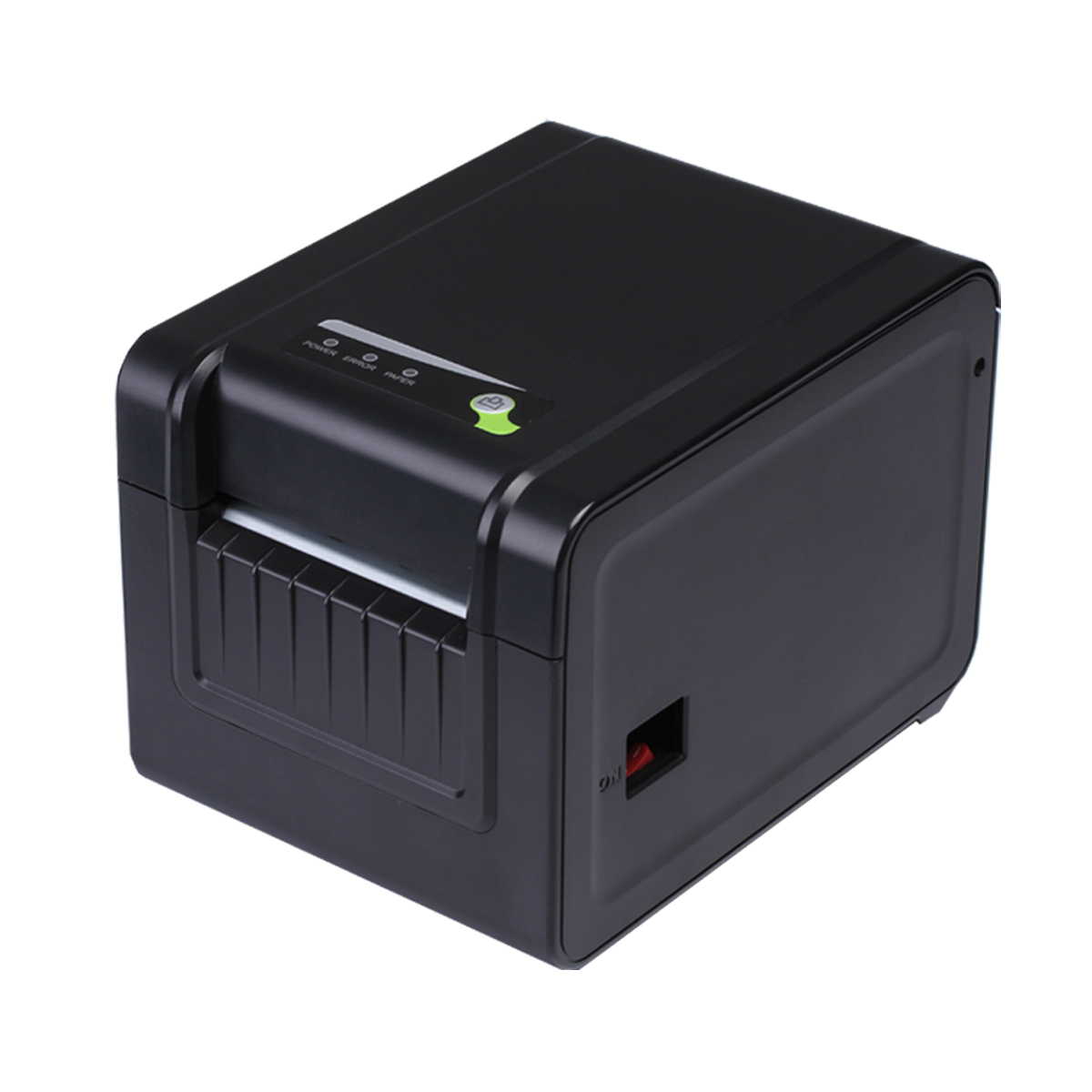

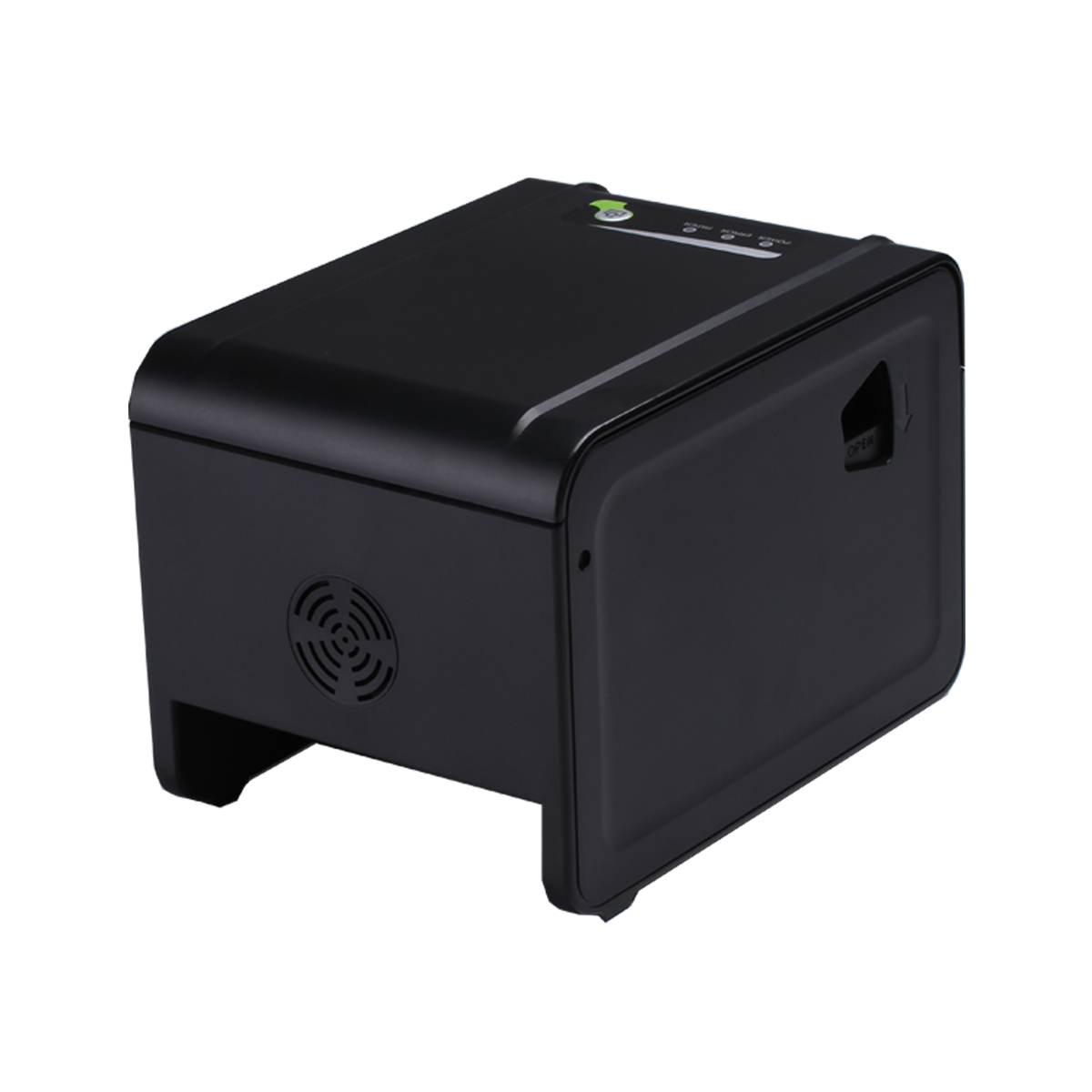

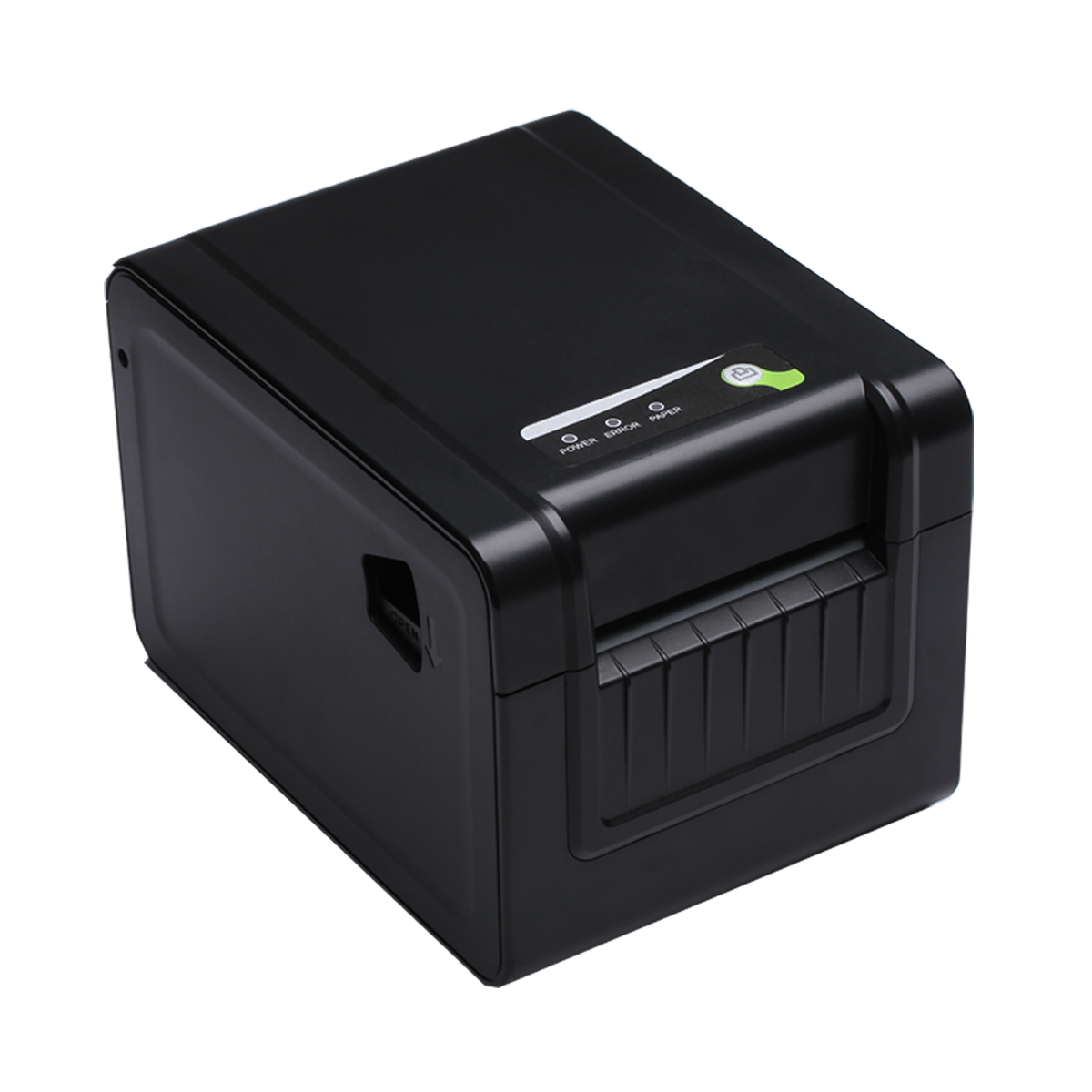

Bluetooth desktop thermal printer for Convenience Store

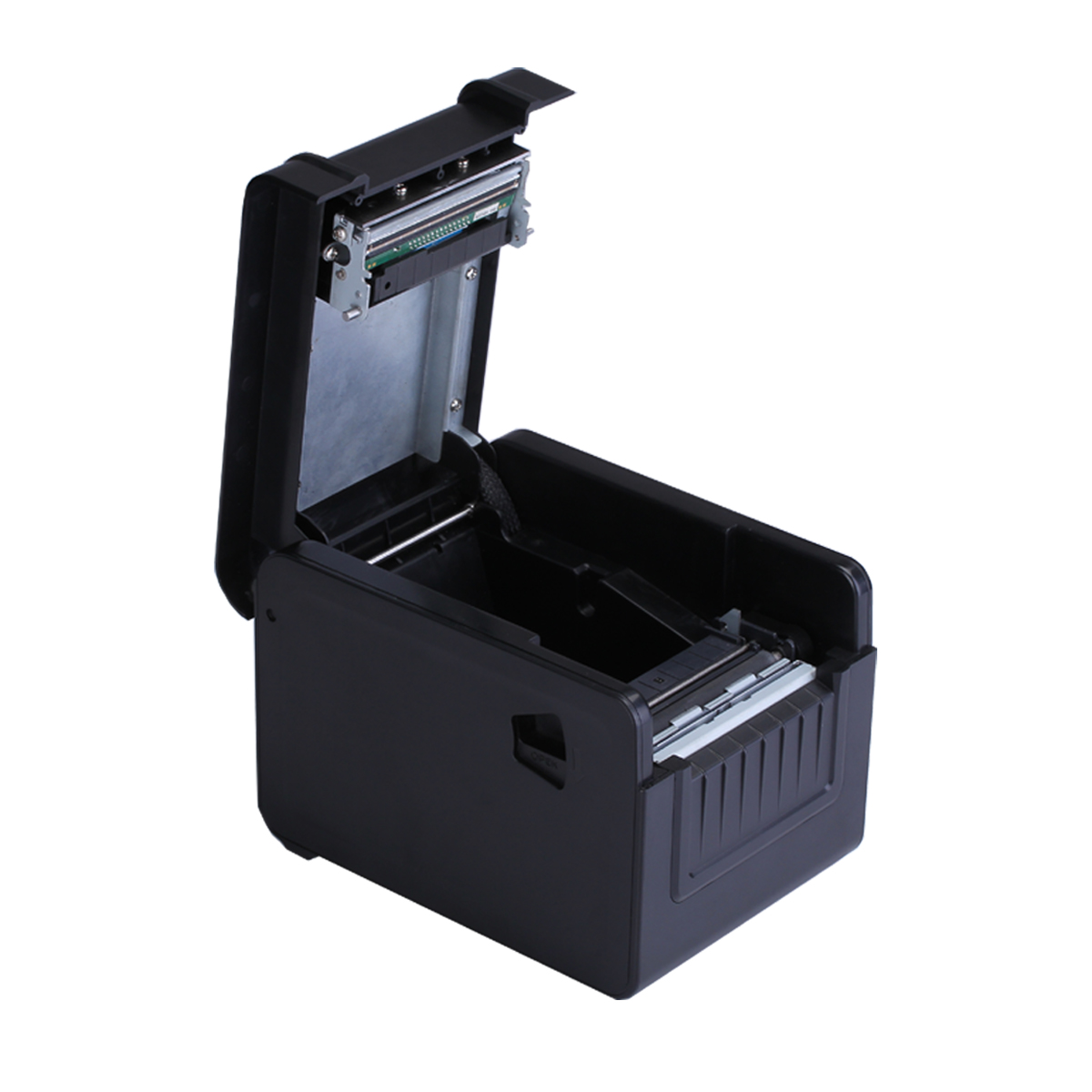

Front Paper loading design, super fluent printing without paper jam
Built in power adapter, satisfying all kinds of installation and using
300 mm / s ultra high-speed printing, improve the printing efficiency

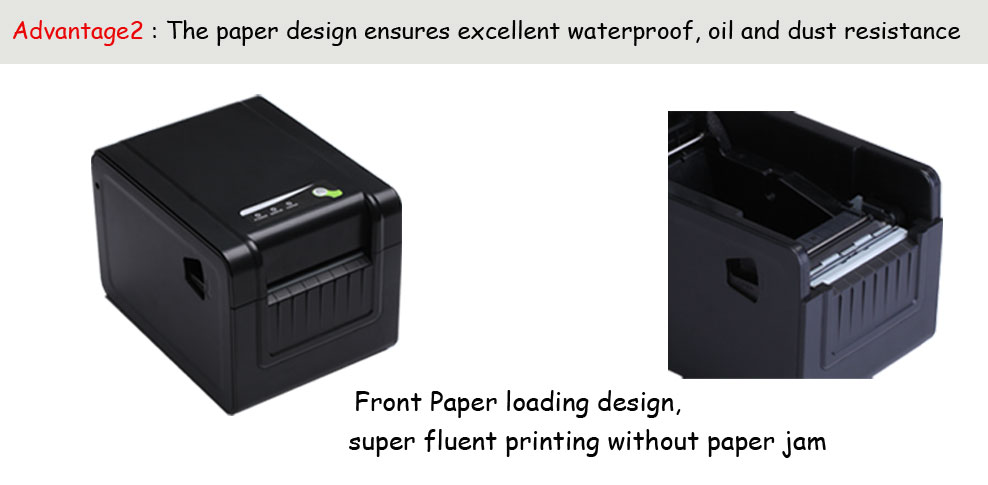

Front paper feeding design with excellent anti-water, anti-oil, anti-dust performance

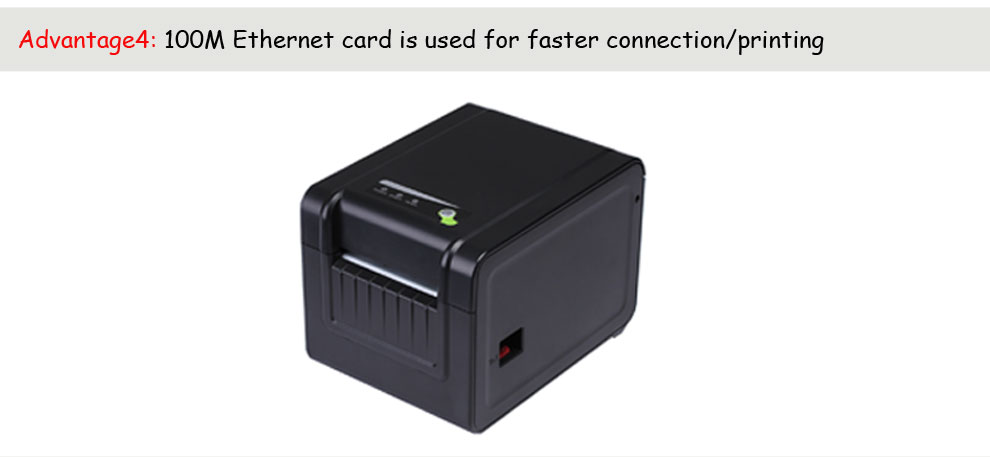

Faster connection and printing by 100M Ethernet port.
Auto-recovery printing after internet disconnection
Support 80MM large diameter roll
Built in larger buffer for high speed printing, avoiding bill losing.
Support LOGO and Graphical download and printing
Support 1D,2D bar code printing
GB18030 Large font
Support Muti-language printing
Support small font printing

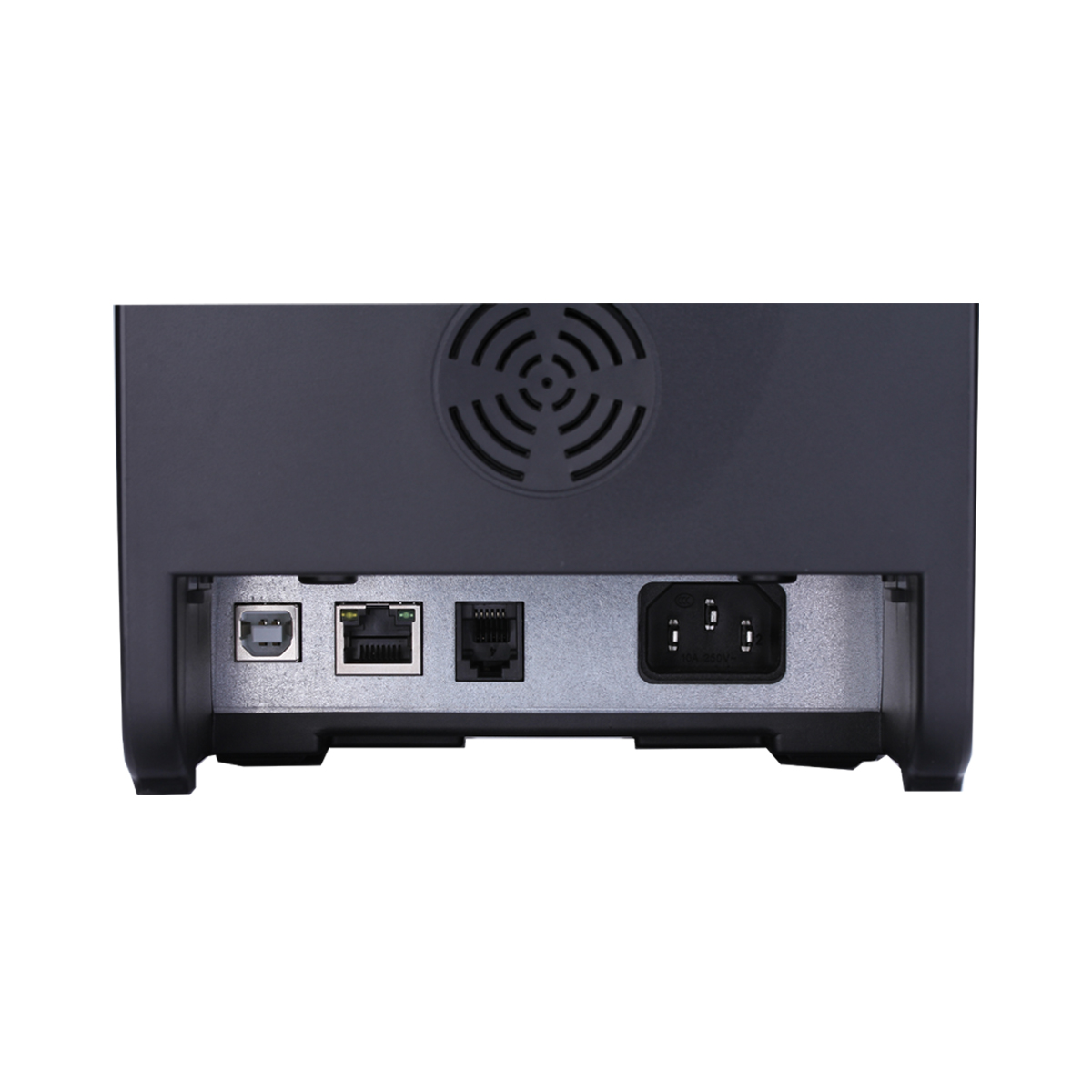

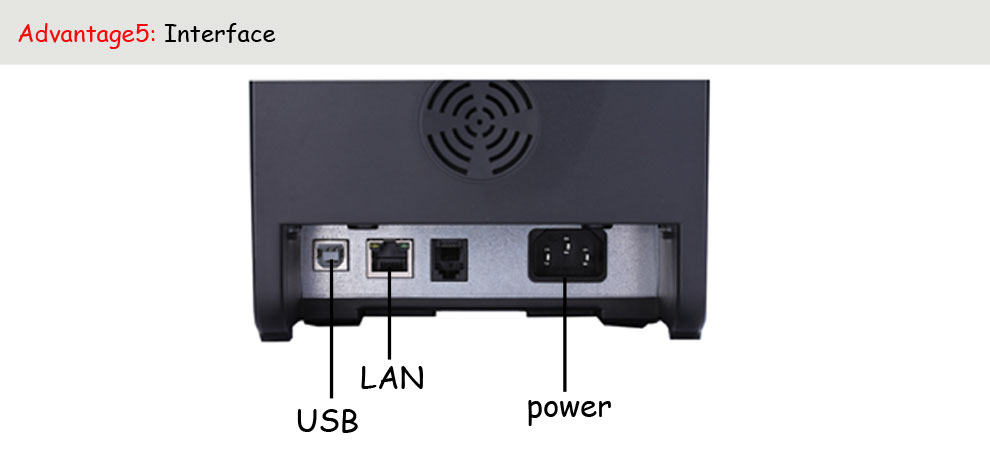

Rich-interface:USB; Ethernet；USB+Ethernet；USB+Bluetooth；USB+COM

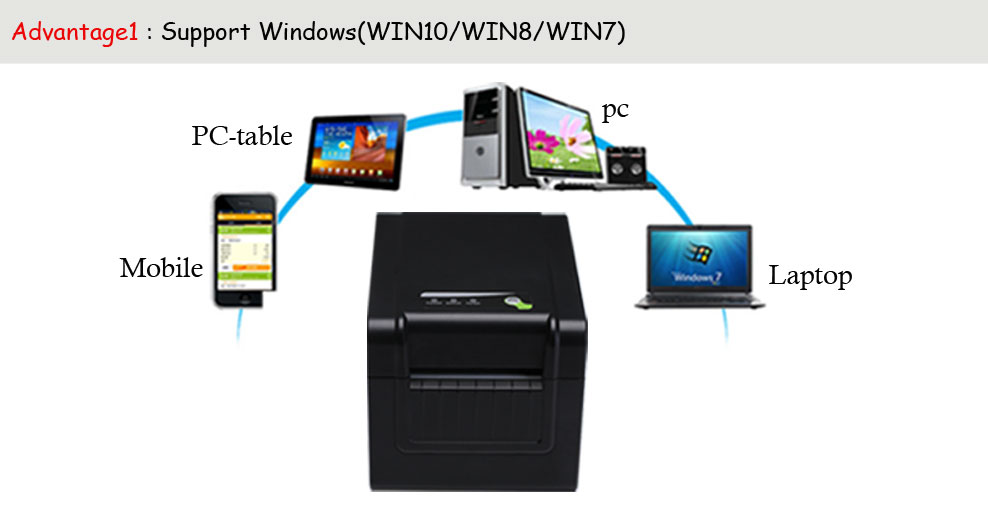

Support Windows,Linux,Android and IOS system
Name | Bluetooth desktop thermal printer | |
Print parameters | Printing Method | Direct Thermal Line |
Printing width | 72mm | |
Resolution | 576 Dots/Line or 512 Dots/Line（8dots/mm，203dpi） | |
Print speed | 300mm/Second | |
Interface | USB; Ethernet；USB+Ethernet；USB+Bluetooth；USB+COM； | |
Line Spacing | 3.75mm（Can adjust line spacing by command） | |
Line No. | FontA-48Lines/FontB-64Lines/Simple, traditional Chinese-24 lines | |
Character | standard GB18030 simplified / traditional Chinese Fonts | |
Character Size | ANK character， Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Simplified/Traditional Chinese：3.0×3.0mm(24×24 dots） | |
Bar code Character | Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Bar code | 1D bar code：UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128 2D barcode：QRCODE | |
Graphics printing | Graphics printing | Support bitmap download and print
|
Paper | Type | Thermal |
Width | 79.5±0.5mm | |
Diameter | ≤80mm | |
Feed method | Vertical paper feeding and level out printing | |
Print commands | Commands | ESC/POS |
Power | Power Adaptor | Input：AC 100V-220V,50-60Hz Output：DC 24V/2.5A |
Cash Drawer output | DC 24V/1A | |
Buffer | Input Buffer | 2048K bytes |
NV Flash | 256K bytes | |
physical characteristics | Weight | 1.53KG |
Dimension | 195*145*143(MM) | |
environment | Working | Temp：5 ~ 45℃， Humidity：10 ~ 80% |
Storage | Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew） | |
Reliability parameter | Print Head Life | 150KM（print density≤12.5） |
Cutter Life | 1500,000times | |
Software | Driver | Android, IOS, Linux, WinXP, Win7, Win8, Win8.1, Win10 |
